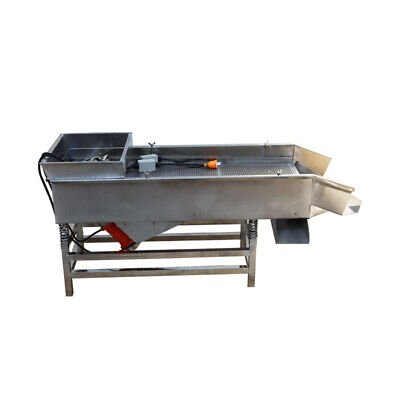

Vibrating Screen Machine

Description

A Vibrating Screen Machine is an industrial device used for separating materials based on their size through a vibrating motion. It is commonly used in various industries, including mining, construction, food processing, pharmaceuticals, and chemicals. The primary function of a vibrating screen is to separate and classify materials such as ores, grains, powders, liquids, and even granules into different size fractions.

Key Components of a Vibrating Screen Machine:

Screen Deck:

This is the surface on which the material is placed for separation. The screen deck consists of mesh or perforated plates that allow particles of a certain size to pass through while retaining larger particles. The deck can have multiple layers (usually 2 or 3) to perform multiple separations.

Vibrating Motor:

The vibrating motor provides the energy to create vibration, making the screen move. It is often mounted on the body of the machine and can be adjusted for different vibration frequencies and amplitudes.

Frame:

The frame supports the screen and motor, providing structural integrity to the machine. It is usually made of robust materials like steel to withstand heavy loads and vibrations.

Springs or Suspension System:

These components help to isolate the machine from external vibrations and ensure smooth operation. Springs or rubber suspensions reduce the noise and wear and tear caused by vibrations.

Drive Mechanism:

The drive mechanism typically consists of a motor that rotates an eccentric shaft, which, in turn, generates vibrations on the screen deck. The motor is connected to the shaft with a belt, and the vibration generated helps move materials over the screen.

Support Deck (Optional):

Some vibrating screens come with additional support decks to allow for different stages of separation, especially in multi-layer screens.

Feed Box:

The feed box is where the material is introduced onto the screen for separation. The feed box directs the material to the screen surface in a uniform manner to avoid clogging and ensure efficient screening.
