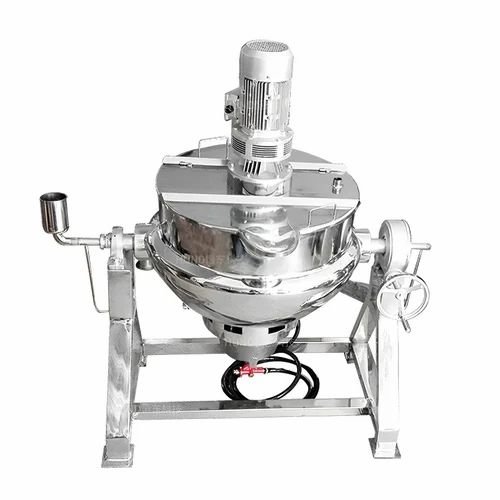

Steam Jacketed Kettle

Description

A Steam Jacketed Kettle is a type of cooking equipment commonly used in the food processing, pharmaceutical, and chemical industries. It is designed to heat liquids or semi-solids by using steam to indirectly heat the contents of the kettle. This method provides uniform heat distribution and prevents scorching or burning of the materials being processed. The steam jacketed kettle is ideal for cooking, mixing, and processing large volumes of food or chemical mixtures that require precise temperature control.

Key Components of a Steam Jacketed Kettle:

Kettle Body:

The main cooking vessel, typically made of stainless steel for durability, ease of cleaning, and resistance to corrosion. It can have various shapes (round, elliptical, or tilting) depending on the application.

Steam Jacket:

The kettle features an outer jacket surrounding the kettle body, which is filled with steam. The jacket allows steam to circulate and transfer heat to the kettle’s contents without directly contacting the material inside, thus providing uniform heating.

Steam Inlet/Outlet:

These are the pipes or valves that allow steam to enter and exit the jacket. The steam supply is typically controlled by a pressure regulator to maintain the desired cooking temperature.

Control Valve:

The control valve regulates the flow of steam into the jacket, allowing operators to control the cooking temperature. Some models may include a pressure gauge or thermometer for monitoring and adjusting the internal temperature.

Tilt Mechanism (Optional):

Some steam jacketed kettles are equipped with a tilting mechanism that allows the kettle to be tilted for easy pouring or draining of contents. This is especially useful in large-scale food production.

Temperature Control System:

Some advanced models include thermostatic controls that help maintain consistent temperatures, which are critical for certain processes, such as in cooking or food preparation.

Stirring Mechanism (Optional):

Many steam jacketed kettles come with a built-in agitator or stirring paddle that helps mix contents evenly. This is particularly useful for preventing ingredients from sticking or burning at the bottom and ensuring uniform consistency.

Support Frame:

• • The frame provides structural stability to the kettle and may include legs, brackets, and other components to keep it in position.
