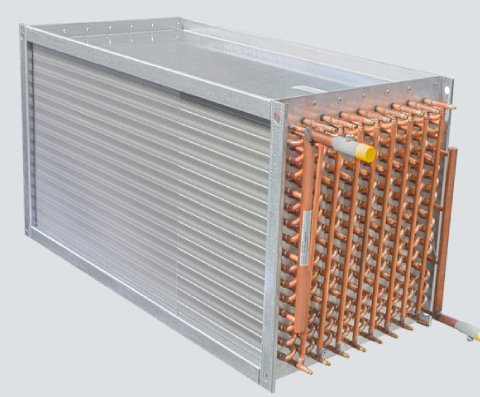

Finned Tube Heat Exchanger

Description

A finned tube heat exchanger is a type of heat exchange equipment that uses tubes with extended fins attached to their outer surface to enhance the heat transfer process. The purpose of these fins is to increase the surface area of the tubes, which helps to improve heat transfer efficiency, especially in situations where space or surface area is limited. This type of heat exchanger is commonly used in applications where one fluid is in a gas or air phase, and the other is a liquid, such as in air conditioning systems, refrigeration, and heating systems.

How a Finned Tube Heat Exchanger Works:

Fluid Flow:

A hot fluid (usually a liquid or gas) flows through the tubes, while a cooler fluid (typically air) flows over the exterior of the tubes. The heat from the hot fluid is transferred through the tube walls to the cooler fluid.

Heat Transfer:

As the hot fluid flows through the tubes, it loses heat to the surrounding air or gas that flows over the fins. The fins increase the heat transfer surface area, allowing more heat to be dissipated from the hot fluid into the surrounding air or gas. This improves the efficiency of the heat exchange process.

Enhanced Heat Exchange:

The extended fins are designed to increase the surface area in contact with the surrounding air. The larger the surface area, the greater the amount of heat that can be transferred. The fins also create turbulence in the air, further increasing the rate of heat transfer.
